1787 · Sound made visible

Chladni's Plates

Metal plates sprinkled with sand and vibrated at specific frequencies. The sand collects along "nodal lines," producing stable geometric patterns now called Chladni figures — first systematically described by Ernst Chladni in 1787.

The conceptual ancestor of every cymatic image in Limen, and a working empirical demonstration that frequency creates geometry. See the bibliography entry under The anomalous evidence.

The Chladni experiment: a plate held at its center, bowed at the edge, sand on the surface settling into a pattern as the plate vibrates. — The classical Chladni experiment — a metal plate held at its center, bowed at the edge, sand settling along nodal lines.

What Chladni did in 1787

In 1787 Ernst Florens Friedrich Chladni published Entdeckungen über die Theorie des Klanges ("Discoveries in the Theory of Sound"), where he presented a repeatable technique for visualizing vibrational modes of rigid plates. He is often called the father of acoustics because this work provided some of the first clear experimental evidence that sound involves wave-like vibrations in material media.

Chladni built on earlier, more qualitative observations by Robert Hooke, who had noticed patterns in flour on vibrating glass, but Chladni systematized the method and documented many configurations. His 1787 treatise included engraved plates with over a hundred distinct patterns — what we now call Chladni figures.

How the plates and figures work

A Chladni plate is typically a flat metal sheet (often square or circular) clamped at the center and excited either with a violin bow at the edge or a loudspeaker. The plate vibrates in standing-wave modes; along certain curves (nodal lines) the plate is essentially still, while other regions oscillate up and down.

When the surface is lightly covered with fine sand, the grains are shaken away from regions of high motion and settle into the nodal lines, tracing out the mode structure as visible patterns. Different excitation frequencies produce different sets of nodal lines, yielding increasingly intricate symmetric figures that encode the underlying eigenmodes of the elastic plate.

The 1787 engravings

Chladni published these engraved figures as part of his treatise — over a hundred patterns across multiple tables, each corresponding to a distinct vibrational mode of a circular or square plate.

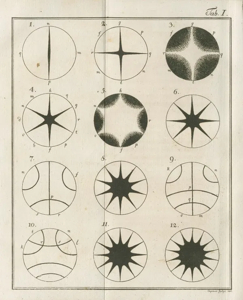

Tab. I — Chladni's figures 1 through 12, twelve circular plates with nodal-line patterns ranging from a single diameter line to multi-pointed stars. — *Tab. I* — circular plates, figures 1–12

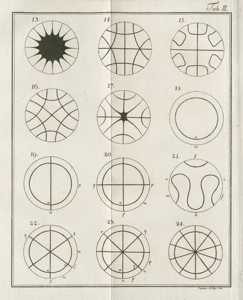

Tab. II — Chladni's figures 13 through 24, further circular plate modes with increasingly elaborate radial and curved nodal structures. — *Tab. II* — circular plates, figures 13–24

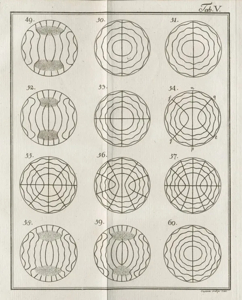

Tab. V — Chladni's figures 49 through 60, circular plates with concentric ring patterns and ripple-like nodal lines. — *Tab. V* — figures 49–60

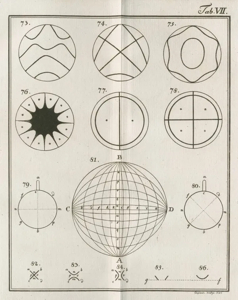

Tab. VII — Chladni's figures 73 through 86, including a spherical diagram demonstrating modes on a curved surface. — *Tab. VII* — figures 73–86 (with spherical mode diagram)

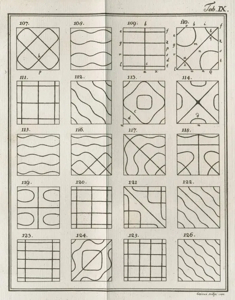

Tab. IX — Chladni's figures 107 through 126, twenty square-plate patterns showing grid-like, wavy, and crossed nodal arrangements. — *Tab. IX* — square plates, figures 107–126

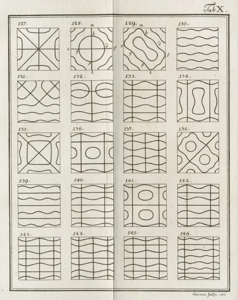

Tab. X — Chladni's figures 127 through 146, further square-plate modes with diagonal and curved nodal lines. — *Tab. X* — square plates, figures 127–146

Scientific significance

Chladni's figures gave experimental access to the mathematics of vibrating continua, anticipated by work from Euler and Bernoulli on rods and strings. Chladni went further by deriving what is now called Chladni's law, relating the frequencies of vibrational modes of flat circular plates to integers indexing those modes. This was a key step in connecting observed acoustic patterns with quantitative wave theory.

His technique became a practical tool for instrument makers: by examining the nodal patterns on the front and back plates of violins and similar instruments, luthiers could carve and adjust wood to optimize resonance and tonal quality. Modern acoustics still uses variants of his method, though loudspeakers and digital analysis have replaced bows and hand-drawn engravings.

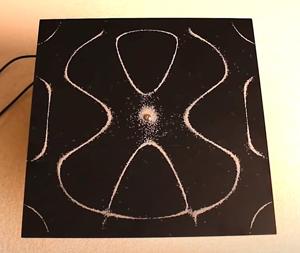

A modern Chladni plate photographed live — a dark square metal surface with white sand settled along two large, curved nodal regions resembling stylized lobes. — A modern Chladni plate, photographed live — the sand settling along the same kind of nodal curves Chladni engraved by hand two centuries earlier.

Broader context and legacy

Beyond acoustics, Chladni also did foundational work on meteorites, arguing from eyewitness accounts and physical evidence that some stones must originate from outer space. In public demonstrations across Europe he combined scientific explanation with musical performance, using his plates and custom instruments (like the euphone and clavicylinder) to make sound and its structure directly visible and audible.

Today Chladni plates appear both in physics education and in art/installation work, since the patterns sit at the intersection of wave mechanics, symmetry, and aesthetic form. For someone working at the interface of consciousness and perception, they are a clean example of how physical wave phenomena can be "lifted" into structured, quasi-symbolic visual forms via relatively simple transduction mechanisms.

A two-by-two grid of four modern Chladni plate photographs, each showing a different symmetric nodal pattern formed by light-colored particles on a dark vibrating metal surface. — Four modes, four frequencies, one plate — the same physics, the same geometry of standing waves, two centuries after Chladni first published the technique.

Cymatics in motion

Engravings are static; the patterns themselves are not. The video below shows a Chladni plate running through a sequence of frequencies — sand assembling itself into one nodal geometry, dissolving, and reassembling into the next as the driving frequency climbs. Each timestamp button jumps to a different mode.

Video: Chladni plate demonstration · embedded for educational reference, not hosted on this site.

Chladni's plates are referenced in the Limen antenna model and in Numen's chord scene as a working empirical demonstration that frequency creates geometry — the conceptual ancestor of every cymatic image in the field framework.
